Make sure to connect the dark grey cuff plugs to the dark grey sockets on the cuffs and the following light grey cuff plugs to the following light grey sockets on the cuff.
Start at the lowest air chamber and connect the plugs to the sockets one by one until you reach the highest air chamber (from bottom to top).
Tip: Do not loosen the plug connection afterwards, but keep the cuffs with the connected hoses.

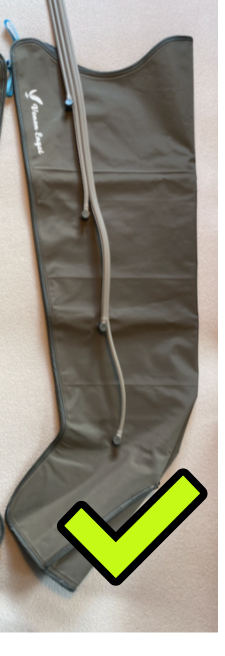

For leg and trouser cuffs

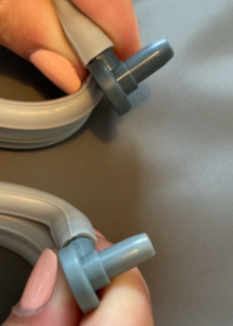

1. The dark grey plug (top) is plugged into the dark grey socket, the light grey plug (bottom) into the light grey socket.

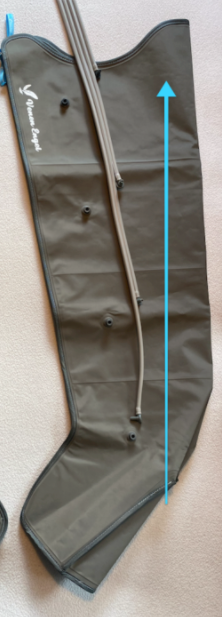

2. The tubes are therefore connected from the feet towards the body.
3. Connect the plugs to the sockets one by one. Press them firmly into the sockets.
4. Ready :)

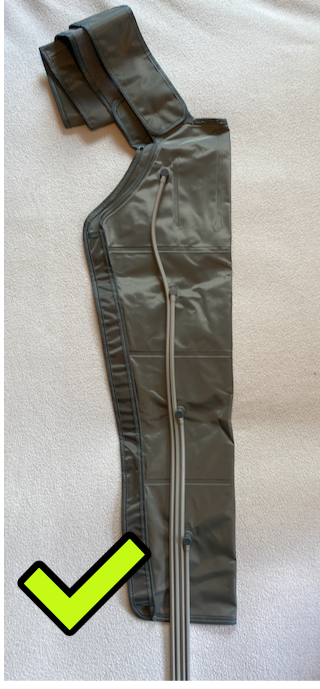

By the arm cuff
Start at the shoulder of the cuff and connect the plugs one by one towards the hands. Here too, the dark grey and light grey plugs and sockets will help you:
|The dark grey plug is plugged into the dark grey socket on the shoulder.||Connect the plugs one by one to the sockets from the shoulder towards the hands. Ready!|

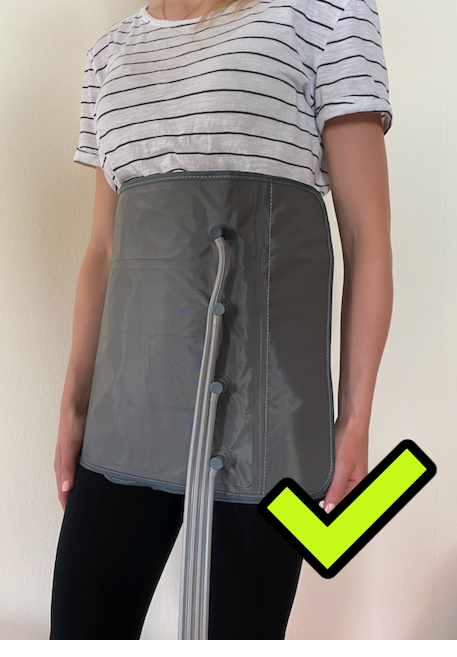

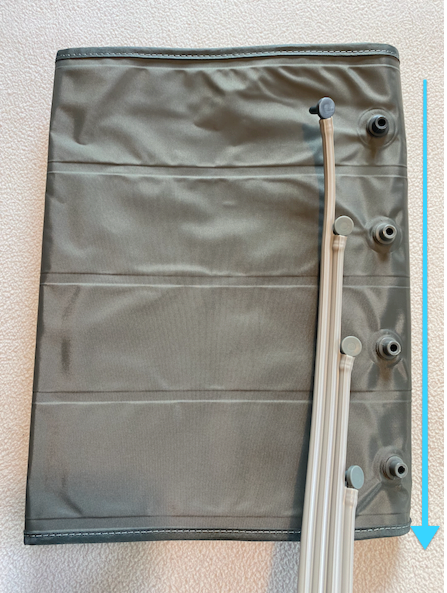

By the belly cuff
Starting at the chest towards the lower abdomen.
|The dark grey plug is plugged into the dark grey socket on the upper side (below the chest).||Connect the plugs one by one to the sockets from the chest towards the lower abdomen. Done!|
If you need further assistance with this, please do not hesitate to contact us.
