Thank you very much for choosing Venen Engel. With the Venen Engel you have given yourself a great gift. We wish you much pleasure with this product!
In order for you to achieve optimal results and be completely satisfied with your purchase, correct application is a prerequisite. For this purpose, we have summarised the most important points that you should bear in mind when using the product.
If you have any questions about the application, accessories, suggestions or criticism of our device, please do not hesitate to contact us:
Phone +49 (0) 6661 748 9105
Mail: service@venenengel.de
Instagram: www.instagram.com/venenengel/
1. Commissioning

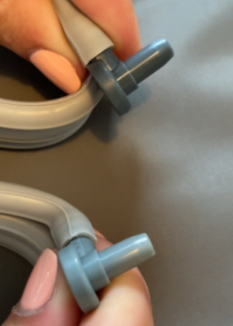

1.1 Connecting the cuff plugs

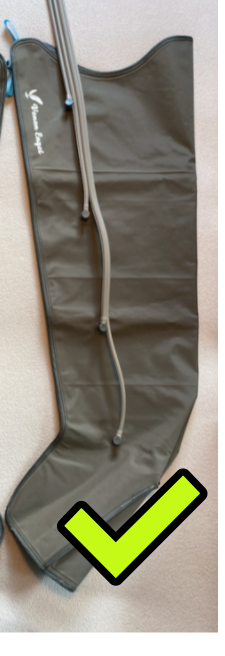

The dark grey cuff plugs are connected to the dark grey sockets on the cuffs and the following light grey cuff plugs to the corresponding light grey sockets on the cuff.
1. The dark grey plug (top) is plugged into the dark grey socket, the light grey plug (bottom) into the light grey socket.

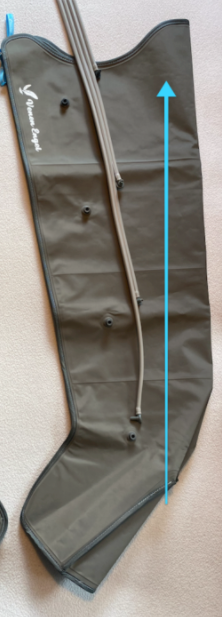

2. The tubes are therefore connected from the feet towards the body.
3. Connect the plugs to the sockets one by one. Press them firmly into the sockets.
4. Ready :)
Tip: Do not disconnect the plugs from the cuffs afterwards, but keep the cuffs with connected hoses.
Please refer to the article "Connecting the cuff plugs" for more information.

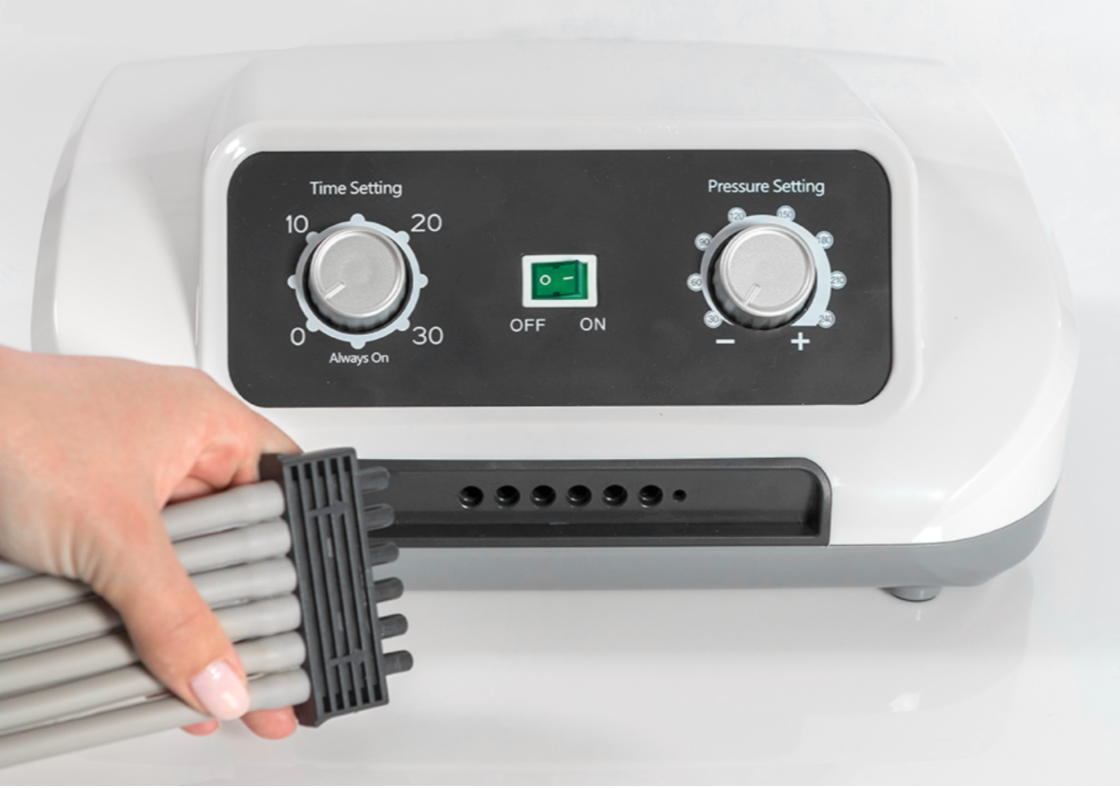

1.2. Connecting the multi-plug
The multi-plug is plugged into the socket on the front or left side of the control unit. Make sure that the multiplug is completely inserted into the unit and is not crooked. There is a small nipple on the multi-plug for checking purposes, which must be inserted into the opening on the unit.

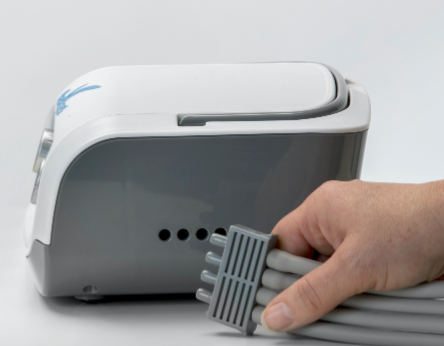

Venen Engel 4 and Venen Engel 4 Premium: the multi plug is plugged in on the side:
All other models:

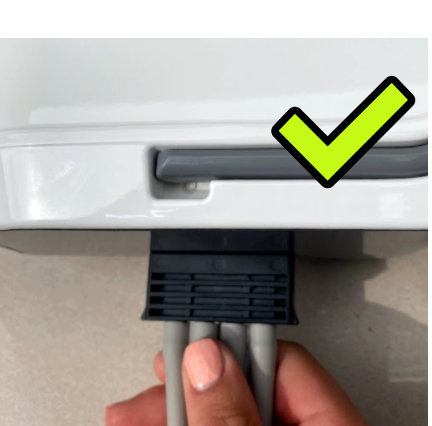

Correctly inserted multiplug:

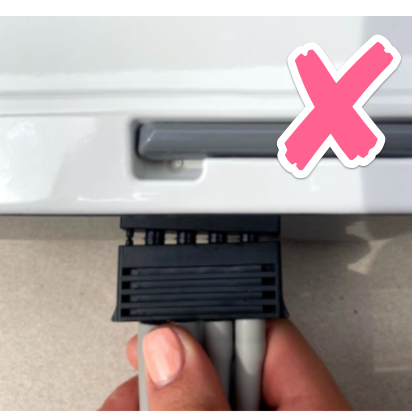

Incorrectly inserted multi-plug:
If you need more information about this, especially if you have a Venen Engel 8 Premium, please refer to the article "Connecting the Multiplug".
In addition, two arrows can be seen on the upper side of the multi-connector. These must be visible on the upper side.
1.3 Connecting the power supply unit
Insert the mains plug from the control unit into the socket (except Venen Engel 6 Mobile).
2. Start application
2.1 Tighten the cuffs
Put the cuffs on.
Important: Pull the zipper completely up to avoid unintentional opening of the cuffs and possible damage. For more information, please refer to the article "Properly tightening the cuffs".
Tip: Wear leggings or sweatpants for hygienic use. This way you can share the Venen Engel with others and save yourself the trouble of cleaning the cuffs.
2.2. Switch on the device

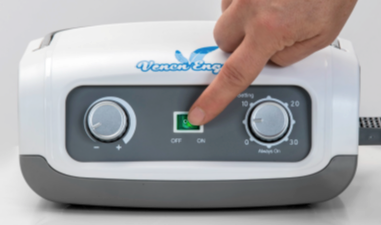

Venen Engel 4, Venen Engel 6 and Venen Engel 6 Mobile can be switched on and off with the toggle switch:
If the toggle switch does not light up immediately, do not worry. In some cases, it will not light up until you set the duration of use.

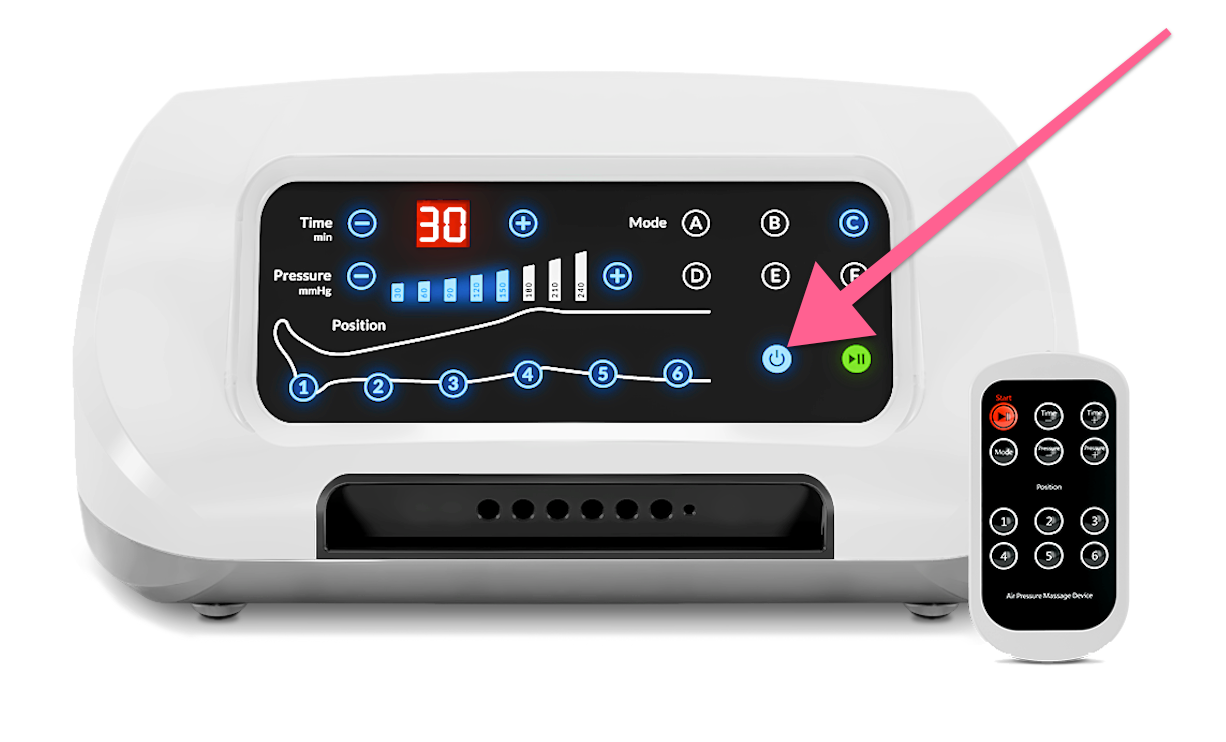

All other models can be switched on and off by pressing the on/off button:
2.3 Set pressure

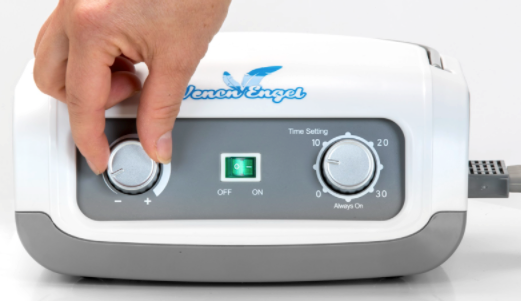

Venen Engel 4 and Venen Engel 6:
Increase pressure: turn clockwise ⟳
Reduce pressure: Turn counterclockwise ⟲

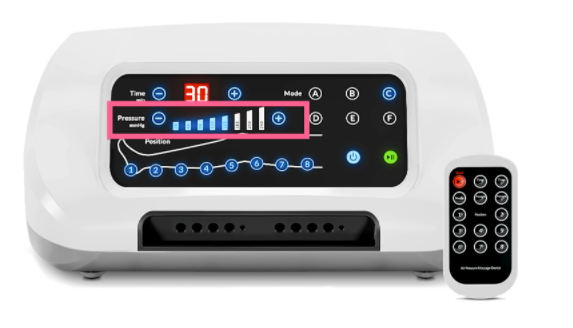

All other models:
To reduce pressure: touch the minus symbol (-)
To increase pressure: touch the plus symbol (+)
Further information can be found in the article "Choosing the right application pressure".

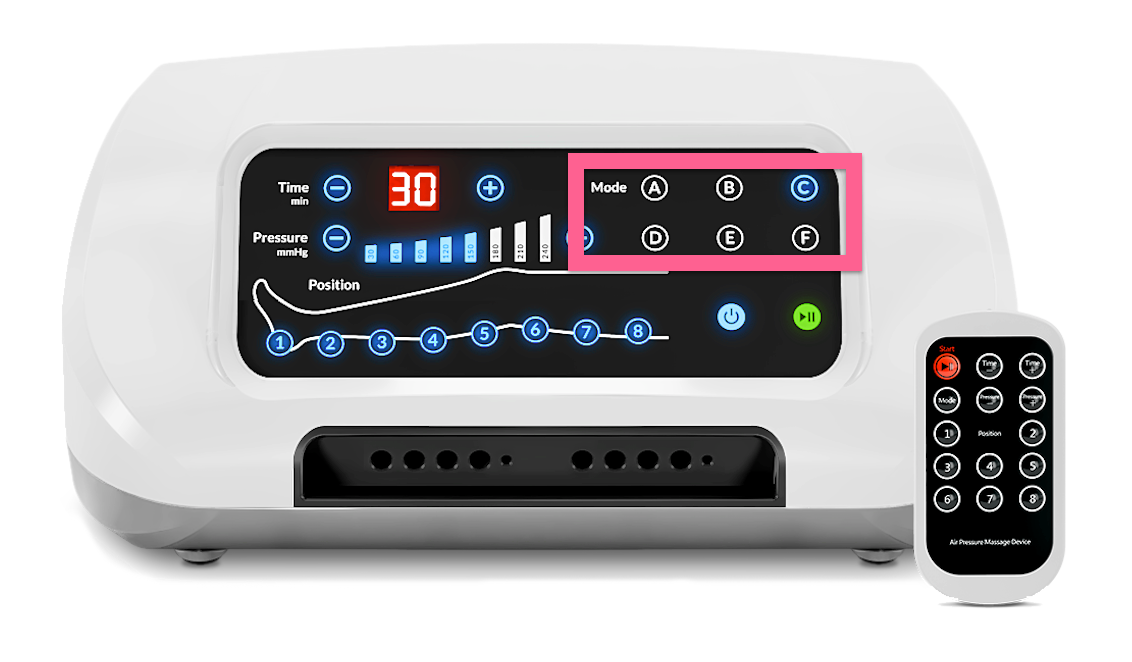

2.4 Premium only: Select program + deactivate individual chambers
This step is only necessary for the Premium models and Venen Engel 6 Mobile.
Select a program (A to F) by tapping on the respective letter.
You can find more information in the article "Choosing the right massage program".
Tip: You can exclude pain-sensitive areas from the massage. For more information, please refer to the article "Deactivating individual chambers".
2.5. Select application duration

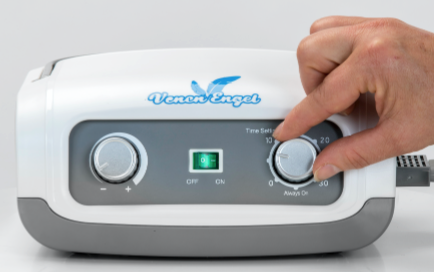

Venen Engel 4 and Venen Engel 6:
To increase duration: turn clockwise ⟳
To reduce duration: Turn counterclockwise ⟲
Tip: You can run the application as long as you like by moving the rotary control down to the circle symbol (⟳) / "Always On".
Important: The dials for the time are not "egg timers". This means that the desired application time runs out without the knob turning back to zero. More information can be found in the article "The application time knob does not expire".

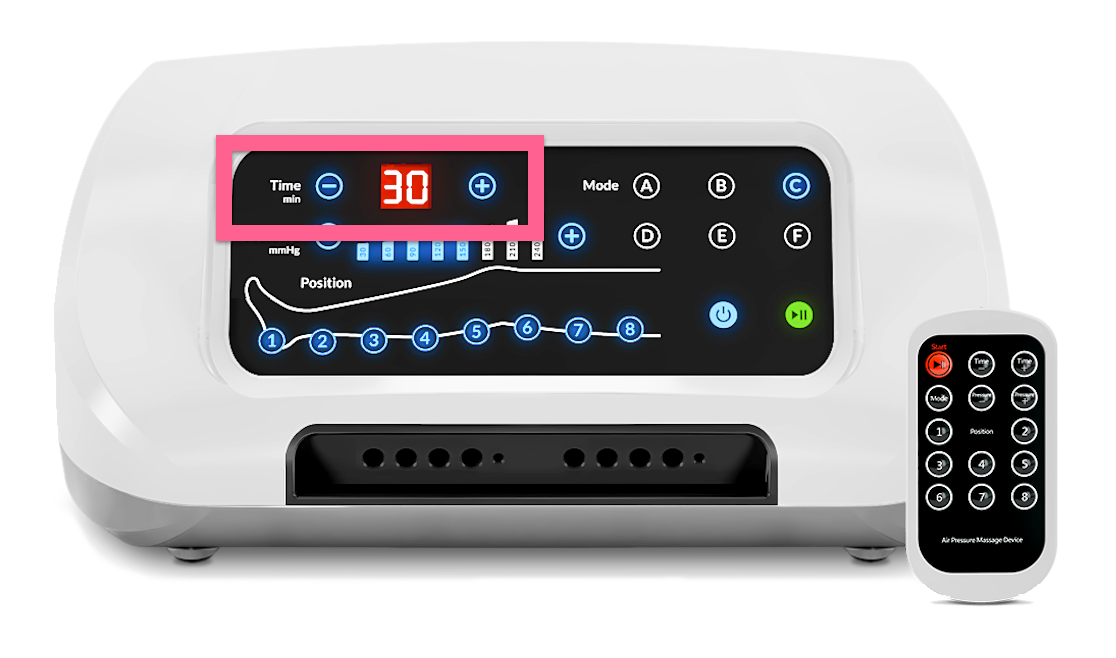

All other models:
To reduce the duration: press the minus symbol (-)
To increase the duration: press the plus symbol (+)
Tip: Keep the +/- symbols pressed to set the time faster.
For more information, please refer to the article "Choosing the right application duration".
3. Start application
Vein Angel 4 and Vein Angel 6 do not require further adjustment. After setting the time and duration, the device starts working immediately.

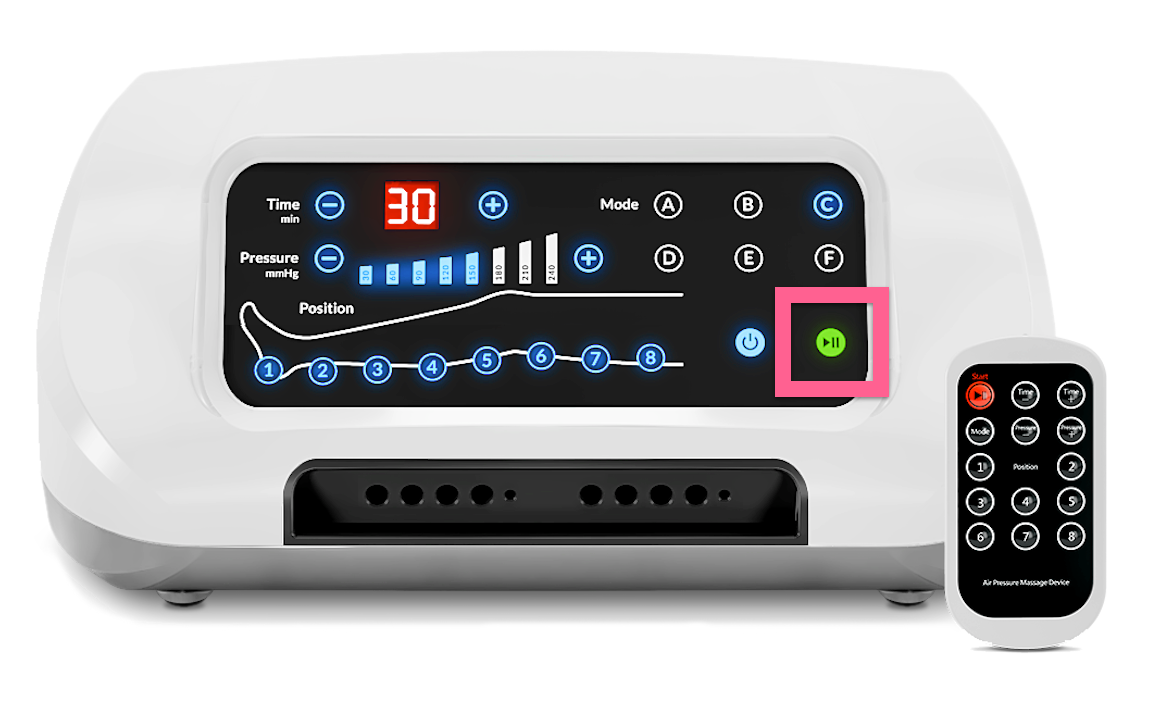

For Premium devices, the application is started by pressing ⏯. You can pause the application by pressing ⏯ again.
4. You do not like the product or you need personal help?
Give us a call at:
+49 (0) 6661 748 9105
Write to us:
Mail: service@venenengel.de
Instagram: www.instagram.com/venenengel/
5. Accessories for the Venen Engel
Your leg cuffs or trouser cuffs are too small? You need an additional arm cuff?
Further accessories for the Vein Angel series can be found in our shop.
If you need further assistance with this, please do not hesitate to contact us.
You can reach us:
Phone: +49 6661 748 9105
Write us on Whats App
Email: service@venenengel.de
